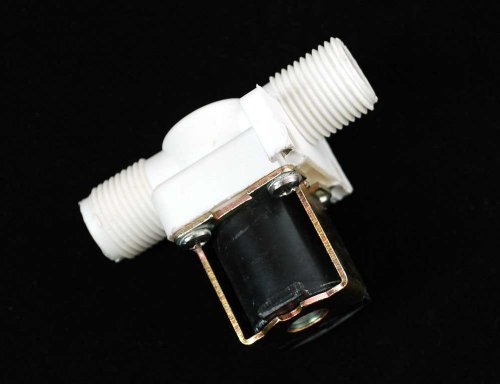

12V Plastic Water Solenoid Valve

$6.95
Old price : $10.10

Adafruit Industries Part#: 3K-TYA3-3SBI 720189973130 - 12V Plastic Water Solenoid Valve

Control the flow of fluid using the flow of electrons! This liquid valve would make a great addition to your robotic gardening project. There are two 1/2\" (Nominal NPS) outlets. Normally, the valve is closed. When 12VDC is applied to the two terminals, the valve opens and water can push through. The valve has a gasket arrangement inside, so there is a minimum pressure requirement of 0.02 Mpa (3 PSI). Also, liquid can only flow one direction. We tried this solenoid at various DC voltages and found we could actuate it down at 6VDC (although it was a little slower to open). Here is the current draw table for various voltages. We suggest a TIP120 or N-Channel power FET with a 1N4001 kickback diode to drive this from a microcontroller pin. For a power supply, our 9V 1A or 12V 1A power adapters will do the job. These solenoids are not rated for food safety or use with anything but water.Voltage Current6V 160 mA7V 190 mA8V 220 mA9V 240 mA10V 270 mA11V 300 mA12V 320 mA

Features:

  • Easily control the flow of water
  • Perfect for your Arduino powered gardening project
  • Requires 3 psi water pressure to operate (not a lot of pressure)

UPCs:

  • 720189973130
  • 013039207661
  • 616268314539
  • 634644748389

EAN:

  • 0634644748389
  • Manufacturer: Adafruit Industries
  • Part Number: 3K-TYA3-3SBI
  • Model: 997
